Engine Test Cell

Silencers and Exhaust Systems for Advanced Acoustic Testing Environments

Description
Technical Data

A hush house provides a controlled, acoustically-treated enclosure specifically engineered for aircraft engine testing operations, accommodating both installed aircraft and uninstalled engine test configurations.

Our Burgess-Manning silencer and exhaust systems for hush houses and aero engine test cells are engineered to deliver optimal testing environments through effective noise reduction and airflow management. These systems ensure accurate engine performance data while maintaining regulatory noise compliance.

Applications:

Land-based gas turbine testing facilities
Military engine testing facilities
Commercial airlines’ engine testing facilities
Gas engine testing facilities
Maintenance, repair, and overhaul (MROs) of aero and land-based engine testing facilities

Industries:

Aviation – aero engines
Military – jet engines
Land-based gas turbine test facilities

Minimum Information Required For Getting A Quote

Description and goal of use with the required performances
Air inlet and exhaust volume flow
Air inlet and exhaust design temperatures (min & max)
Pressure drops requirements
Noise guarantee requirements
Plot size requirements

Acoustic Principles:

The acoustic principles used are mainly absorptive. Noise emissions are reduced by installing acoustic baffles and/or acoustic-lined walls designed to handle hot and turbulent exhaust flows from aircraft engine exhausts. The noise emission reduction systems for the aero engine test cells are located throughout the entire system, both at the inlet as well as at the exhaust section and the enclosure section.

Product Features & Benefits:

Design based upon long-term testing and accommodating multiple engine types
Vibration Reduction during max power full load testing, preventing damage in and outside of the testing facilities
Economical design accommodating extended use and ease of maintenance
Noise Emission reduction to acceptable environmental levels
Optimized overall pressure drop
Dimensions: any size, the system is modular and can be adjusted to the specific needs of the engine.

Design:

Flow rate: Suitable for any Gas Turbine model (aero or land-based)
Design temperature: ambient to 730 °C Dimensions: any size, the system is modular and can be adjusted to the specific needs of the engine.

Design Codes:

Design accommodating the aircraft engine OEM design parameters, such as backpressure, flow, vibration and other relevant engine-specific requirements
Local Noise Emission and vibration level requirements

Options:

Enclosures
Vibration reduction systems such as DE tuners and augmenter systems
Components such as bird screens, flow guide vane systems, platforms and guides, etc.

Download company Brochure

Relevant Industries

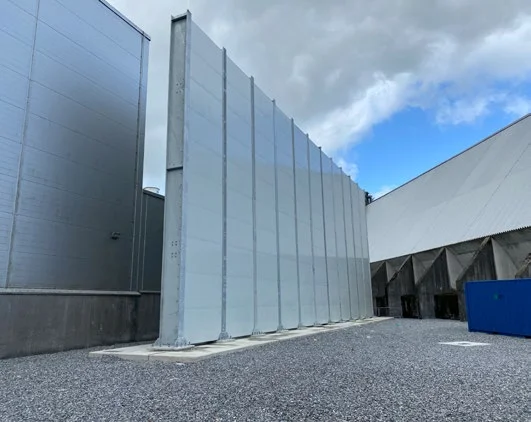

Industrial applications generate considerable noise as a result of high-capacity machinery, continuous operations and complex infrastructure. Without proper noise control, these environments can pose risks to employee health, disrupt surrounding communities and violate environmental and occupational noise regulations. Implementing tailored noise mitigation solutions of acoustic walls, noise barriers and silencers while utilizing acoustic modeling, CFD, FEA and noise measurements to design solutions not only supports safety, but also enhances operational efficiency and community relations.
