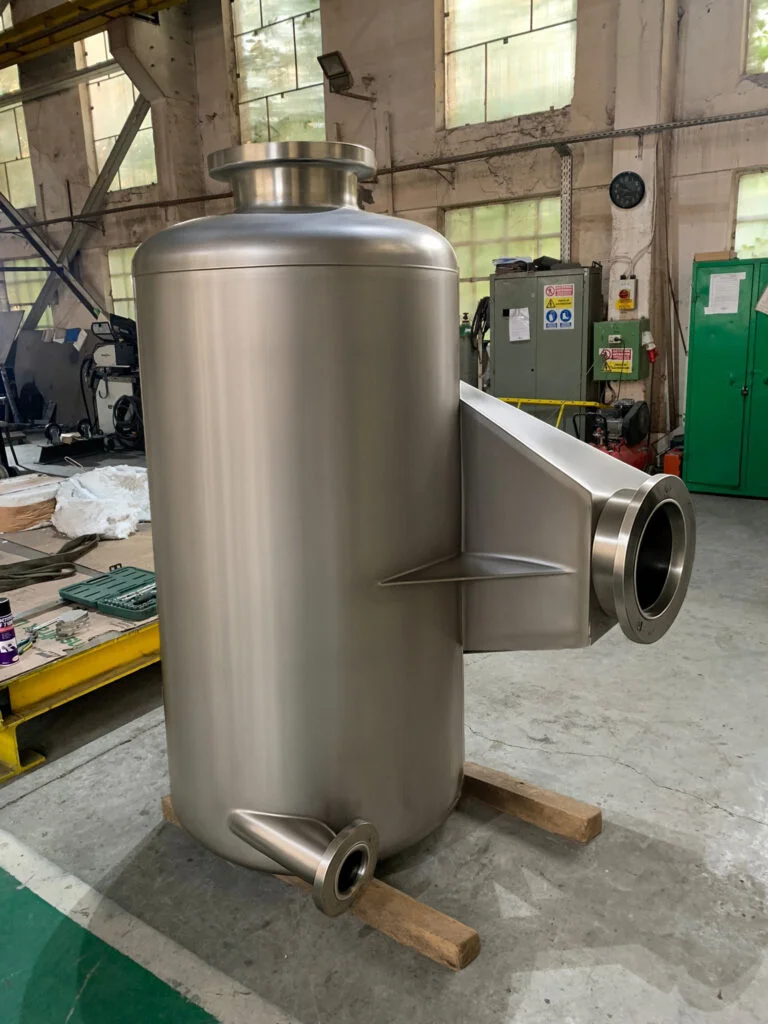

Water Separator Silencer

Silencers For Vacuum Pumps and Water Sealed Vacuum Blowers

Description
Technical Data

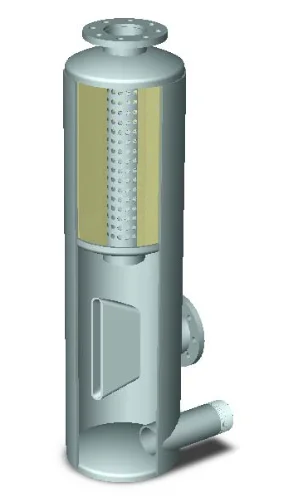

The Burgess-Manning patented water separator/silencer design removes entrained liquid from air in a vacuum system while providing noise reduction. Gas flow passes through a ported tube and snubbing chamber, which attenuates the noise over a wide frequency range. Simultaneously, 99% of the free liquid is removed centrifugally in the separation section.

Industries:

Chemical processing
Power generation
Pulp and paper
Water and wastewater treatment
Food and beverage
General industrial vacuum systems

Systems and Conditions:

Water-sealed vacuum blowers
Systems requiring both liquid separation and noise control
Environments with entrained liquid in gas flow
Low-pressure discharge systems (up to 10 psig)

Minimum Information Required For Getting A Quote

Inlet/outlet size
Flow rate
Operating pressure
Material requirements
Connection type (NPT or flanged)
Acoustic performance requirements (if applicable)

Acoustic Principles:

WSDA: Transformative and reactive – uses a ported tube and snubbing chamber for wide-frequency noise attenuation.
WSS: Primarily absorptive/reactive – provides up to 10 dB noise reduction through centrifugal separation and basic silencing.

Product Features & Benefits:

WSDA

Up to 40 dB noise reduction
99% free liquid extraction
Long service life and durable construction
Economical solution for dual-function systems
Patented design for enhanced acoustic performance

WSS

Up to 10dB noise reduction
99% free liquid extraction
Compact and cost-effective
Long-lasting with minimal maintenance
Ideal for smaller or less demanding systems

Design:

Diameters: 1” to 16” (larger sizes available upon request)
Pressure: Maximum operating pressure of 10 psig
Connections: NPT or 125# ANSI flanged
Material: Standard carbon steel; other materials available upon request
Finish: Prime-coated exterior

Design Codes:

Flanges drilled to match 125 lb. American Standard Flanges

Options:

Enclosures
Vibration reduction systems such as DE tuners and augmenter systems
Components such as bird screens, flow guide vane systems, platforms and guides, etc.

Download company Brochure

Download WSDA product SHEET

Download WSS product SHEET

Remove Entrained Liquid From Air

99% Efficient Extraction Of Free Liquid

Noise Reduction

Up to 40+ dB

MATERIALS

Carbon Steel – Other Materials Available Upon Request
